CNC Machine Tool Selection Guide
How to Choose the Right CNC Machine for Any Part
Introduction
Selecting the right CNC machine tool is a critical decision in manufacturing.
However, many companies still choose machines based on brand, axis count, or price, rather than actual part requirements.
This guide provides a part-driven CNC machine selection methodology, covering:
- 3-axis, 4-axis, 3+2, and 5-axis CNC machining
- Turning, milling, and multi-task machining
- Practical decision logic used by manufacturing engineers
The goal is simple: match the machine to the part, not the other way around.

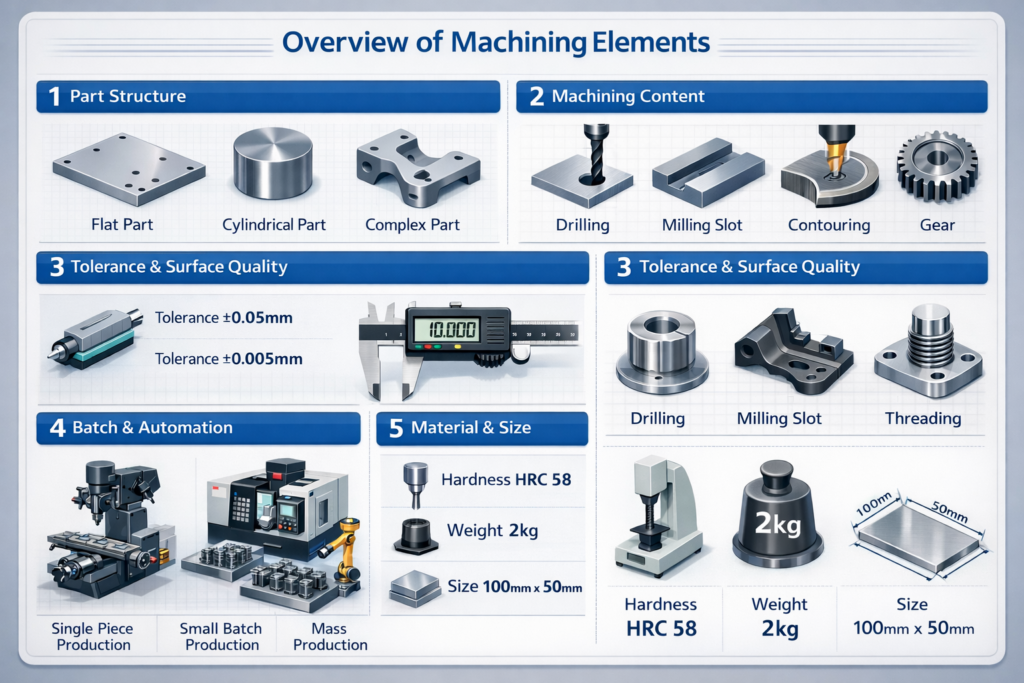

Key Factors in CNC Machine Selection
Before choosing a CNC machine, always evaluate the following five factors:
Part Geometry
Is the part rotational, prismatic, or free-form?
- Rotational → CNC lathe or mill-turn
- Prismatic → Machining center
- Free-form → 5-axis machining
Machining Features
Common features include:
- Holes, slots, pockets
- Angled faces
- Free-form surfaces
These features determine whether 3-axis, 4-axis, or 5-axis machining is required.
Tolerance and Surface Finish
- Standard tolerance (±0.05 mm): most CNC machines
- Tight tolerance (±0.005 mm): higher rigidity, better control system
- Complex surfaces: require continuous tool orientation control
Production Volume
- Prototype / small batch → flexible CNC machines
- Medium batch → 3+2 or horizontal machining
- Mass production → automation, fixtures, dedicated machines
Material and Part Size
- Aluminum → high-speed machining
- Steel / hardened steel → rigidity and torque
- Large parts → gantry or horizontal machines
CNC Machining Processes and Machine Types
| Machining Process | CNC Machine Type | Typical Applications |
|---|---|---|
| Turning | CNC Lathe | Shafts, flanges, sleeves |
| Milling | Vertical / Horizontal Machining Center | Plates, housings |
| Drilling & Tapping | Tapping Center | Aluminum parts |
| Boring | Horizontal Boring Mill | Gearboxes |
| Grinding | Surface / Cylindrical Grinder | High-precision parts |
| EDM / Wire EDM | EDM / WEDM | Hardened steel |
| Multi-task Machining | Mill-Turn Center | Complex components |

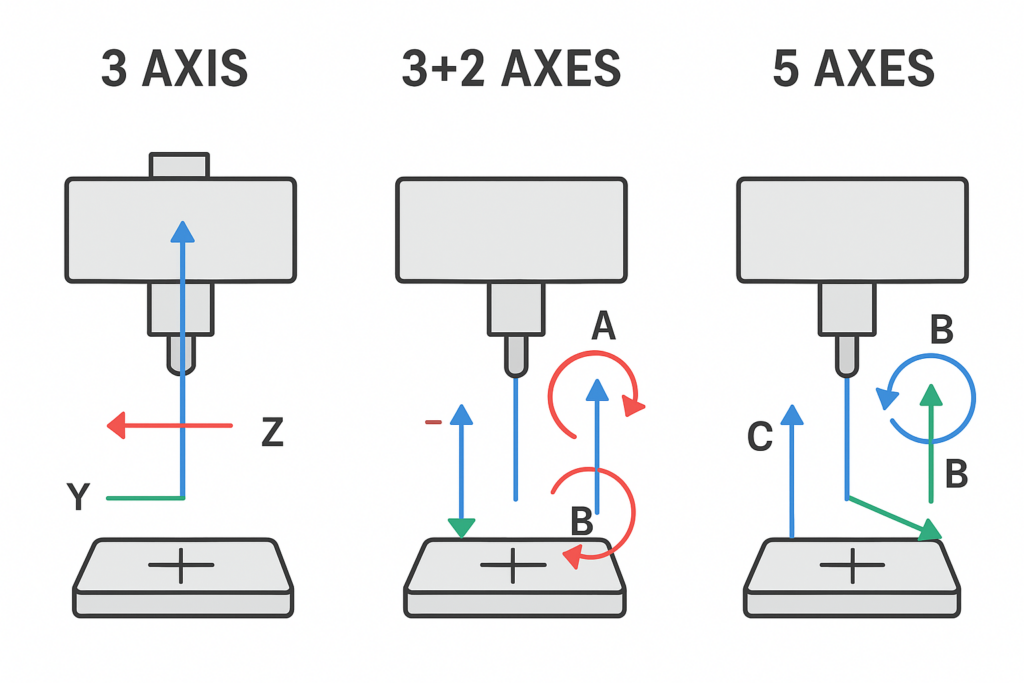

CNC Machine Selection by Axis Configuration
3-Axis CNC Machining Center
- X / Y / Z linear axes
- Best for planar and 2.5D machining
- Lowest cost and highest versatility
Typical applications: brackets, plates, general mechanical parts
4-Axis CNC Machining Center
- Adds one rotary axis (A or C)
- Enables indexed side machining
- Reduces re-clamping
Typical applications: parts with side holes or indexed features
3+2 Axis CNC Machining (Positional 5-Axis)
- Rotary axes used for positioning only
- Machining still performed in X/Y/Z
Advantages:
- One setup for multiple faces
- Higher accuracy than 3-axis
- Lower cost than full 5-axis machining
Typical 5-Axis CNC machine applications: housings, stamping parts, multi-face components
5-Axis Simultaneous CNC Machining
- Continuous interpolation of linear and rotary axes
- Full control of tool orientation
Required for:
- Complex 3D surfaces
- Molds, impellers, turbine blades
Gantry CNC Machining Centers
- Large work envelope
- High rigidity
Typical applications: large molds and structural components
Mill-Turn (Multi-Task) CNC Machines
- Turning and milling in one setup
- Reduced handling and positioning error
Typical applications: complex rotational parts
How to Choose a CNC Machine by Part Type
| Part Type | Recommended CNC Machine | Axis Configuration |
|---|---|---|
| Shafts | CNC Lathe / Mill-Turn | 2–5 |
| Plates | 3-Axis Machining Center | 3 |
| Housings | Horizontal MC / 3+2 | 3+2 |
| Stamping Parts (post-machining) | Five-Sided Machining Center | 3+2 |
| Molds | 5-Axis CNC Machine | 5 |
| Impellers | 5-Axis CNC Machine | 5 |
| Large Structures | Gantry CNC Machine | 3–5 |
| Hardened Inserts | EDM / Grinding | — |
CNC Machine Tool Selection Guide Tree
Common CNC Machine Selection Mistakes
Choosing Too Many Axes
More axes increase cost, complexity, and setup time.
Choose only what the part actually needs.
Selecting Machines by Brand Only
A famous CNC control system does not automatically guarantee better productivity.
Overusing 3-Axis Machining
Excessive re-clamping increases error and reduces efficiency.
Ignoring Total Manufacturing Cost
The right machine reduces fixtures, setups, and inspection time.
